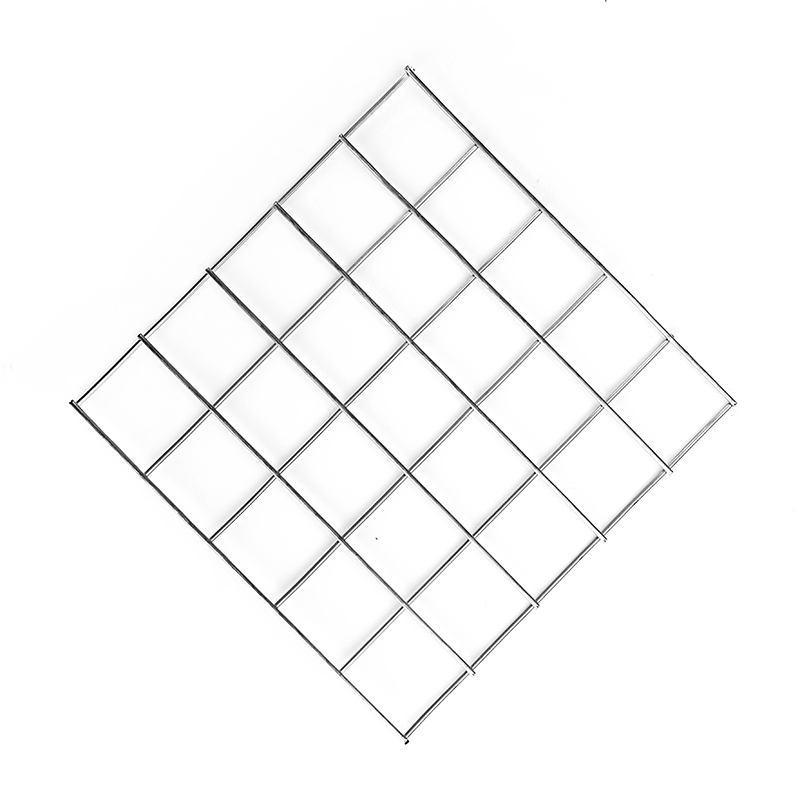

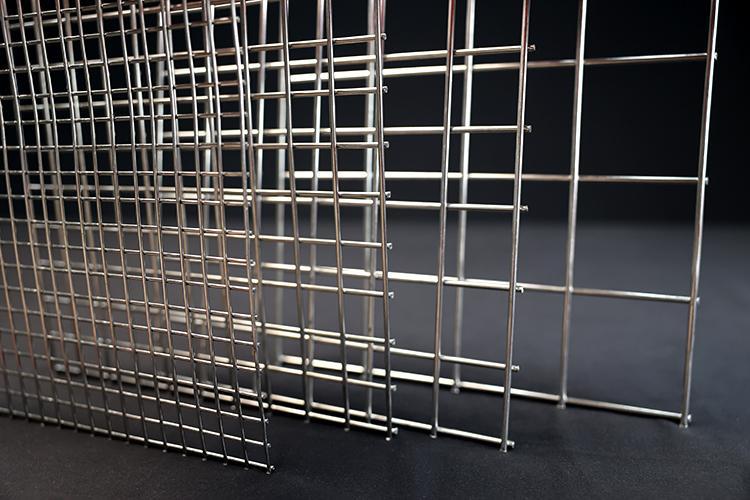

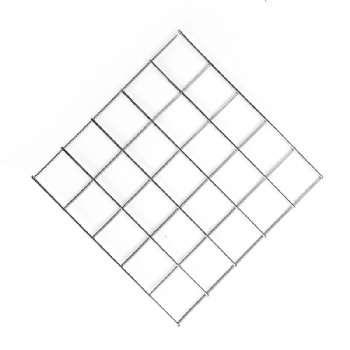

Stainless steel welded mesh sheet

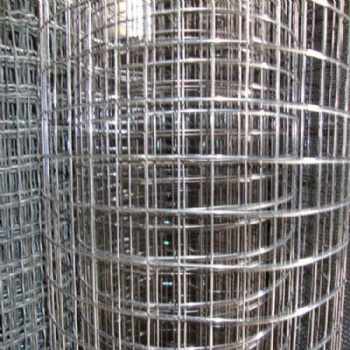

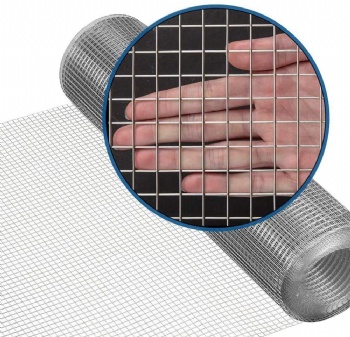

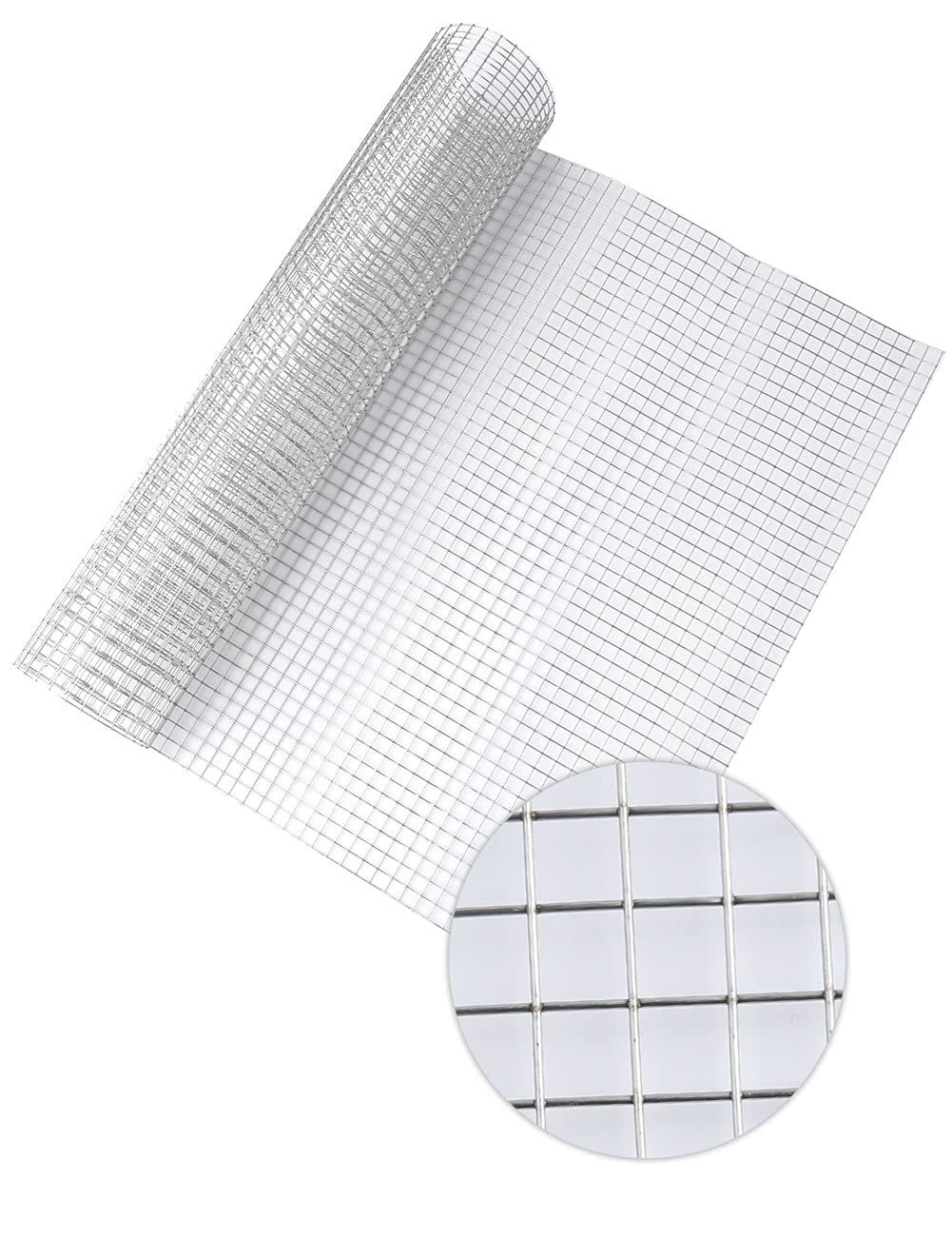

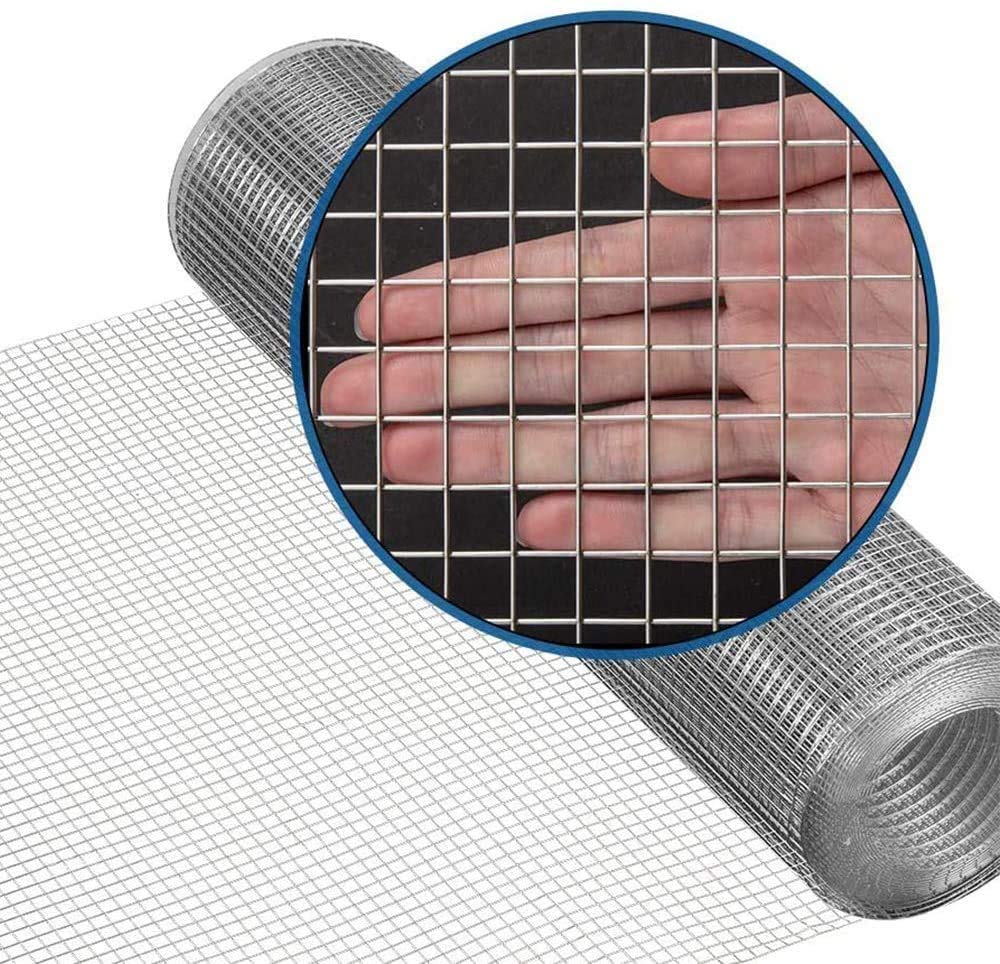

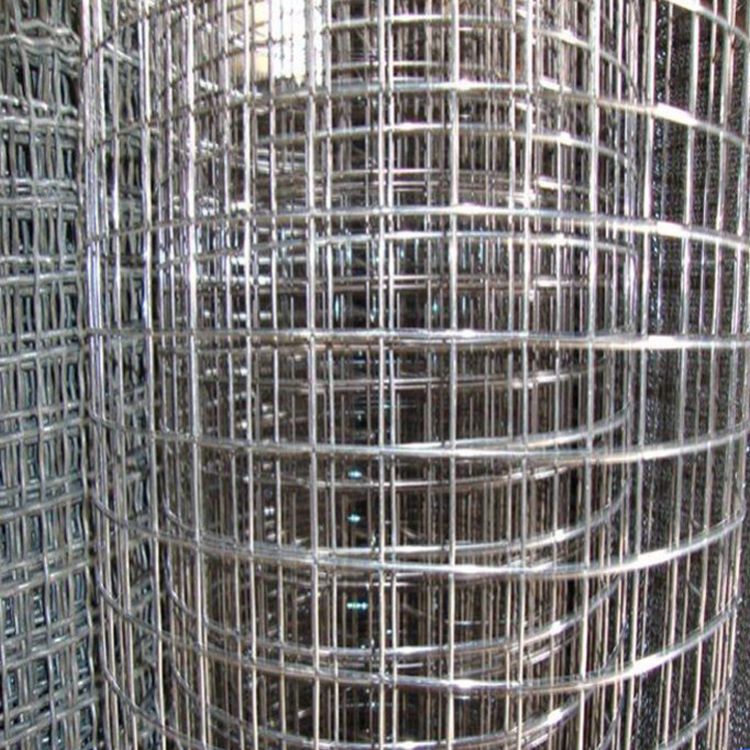

Stainless steel welded wire mesh coil


Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, stainless steel wire after welding and surface treating. Welded wire mesh fabric is widely used in building construction, protection system, filtration, food, agriculture and so on. Welded wire mesh produced by Sino Union Technology Co., Ltd  can be galvanized, PVC coated, or stainless steel welded wire mesh.

welded mesh  (13).jpg

Common product parameters:(Accept customized requirements

Aperture (inch)Aperture (mm)Wire diameter (BWG)
1/4"X1/4"6.4mm x 6.4mm22, 23, 24
3/8"X3/8"10.6mm x 10.6mm19, 20, 21, 22
1/2"X1/2"12.7mm x12.7mm16, 17, 18, 19, 20, 21, 22, 23
5/8"X5/8"16mm x 16mm18, 19, 20, 21
3/4"X3/4"19.1mm x 19.1mm16, 17, 18, 19, 20, 21
1"X1/2"25.4mm x12.7mm16, 17, 18, 19, 20, 21
1"X1"25.4mm x 25.4mm14, 15, 16
1-1/2"X1-1/2"38mm x38mm14, 15, 16, 17, 18, 19
1"X2"25.4mm x 50.8mm14, 15, 16

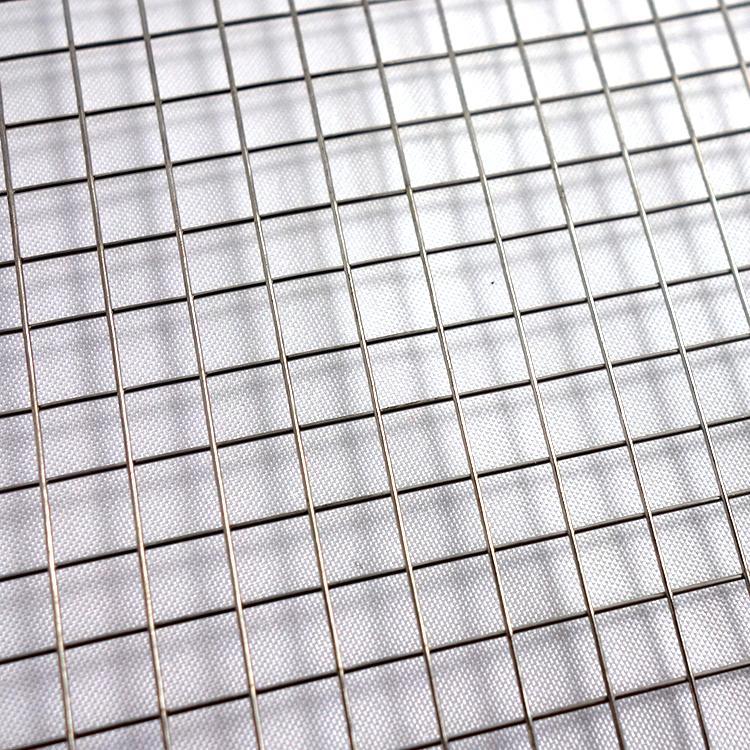

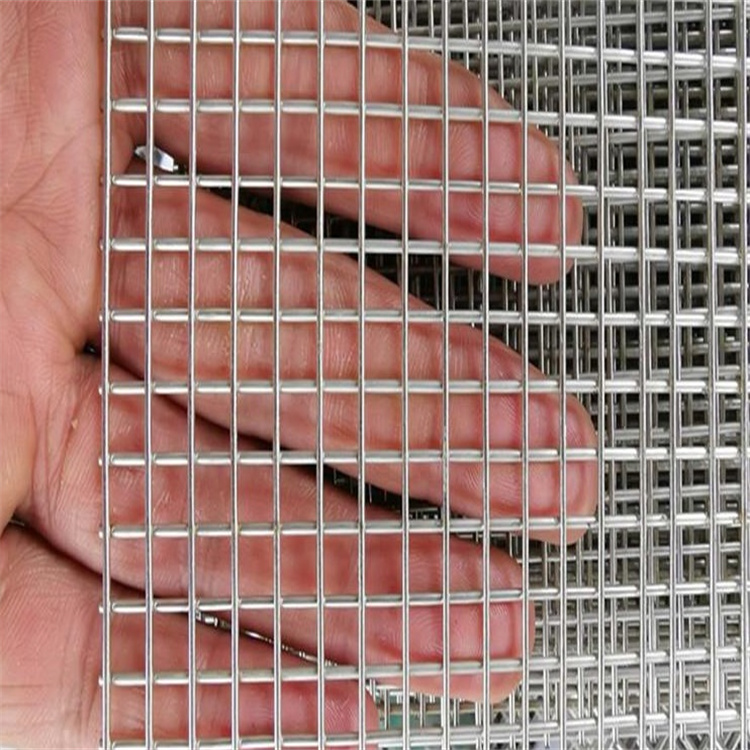

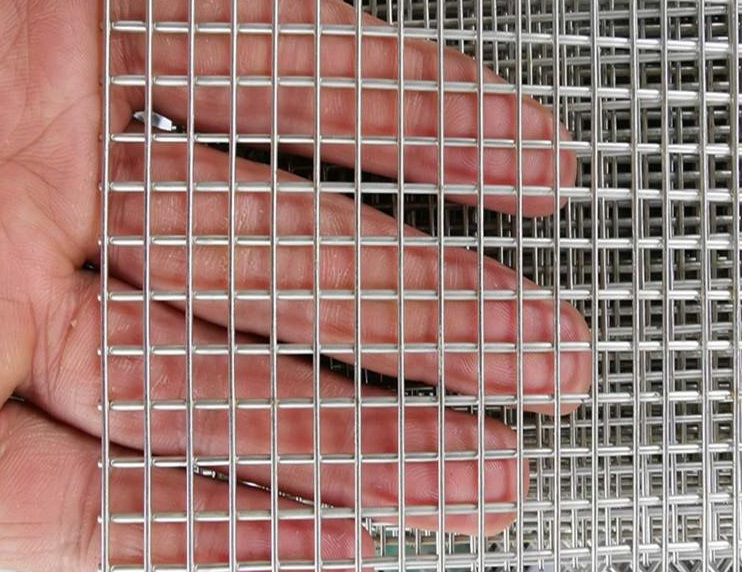

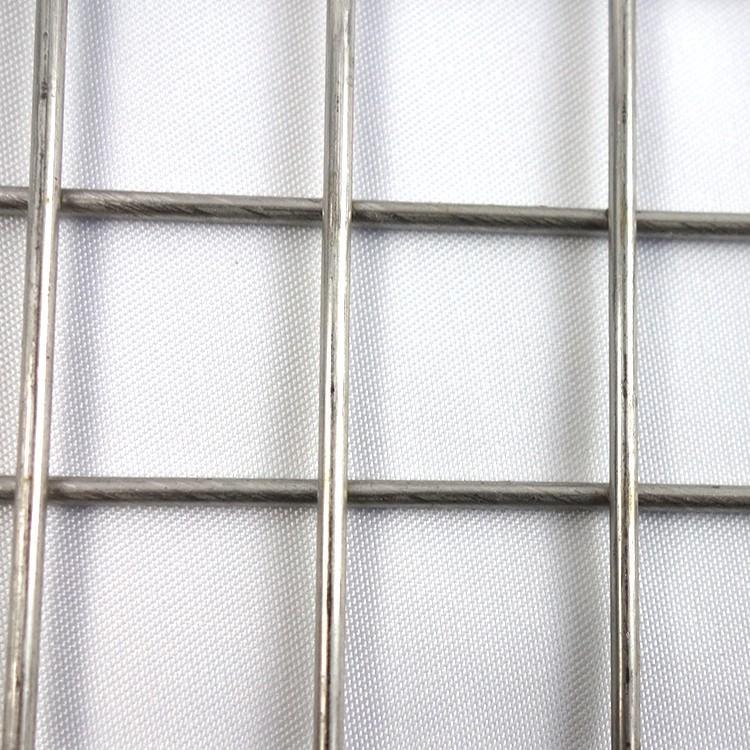

Aperture display:


The main purpose:


Welded wire mesh is widely used in industry, agriculture, construction, transportation, mining and other industries. Such as machine protective covers, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. It plays an important structural role in the thermal insulation system. During construction, the hot-dip galvanized welded grid polystyrene board is placed on the inner side of the outer wall outer mold to be poured , The external insulation board and the wall are alive at one time, and the insulation board is integrated with the wall after the mold is removed.


product advantages:


1. The grid structure is simple, beautiful and practical;


2. Easy to transport, installation is not restricted by terrain undulations;


3. Especially for mountains, slopes, and multi-curved areas;


4. The price is moderately low, suitable for large-scale use.


Main application: closed railways and highways, field fences, community fences, and various isolation nets.



Welded wire mesh can be made into a mesh form. The surface of the mesh can be dipped or sprayed. A protective film is formed on the surface of the welded wire mesh, which can effectively make the metal wire and external water or corrosive. The material isolation can achieve the effect of prolonging the use time, and can also make the surface of the mesh show different colors, so that the mesh can achieve a beautiful effect. The dipped mesh is usually used outdoors and connected with the column to protect against theft.
